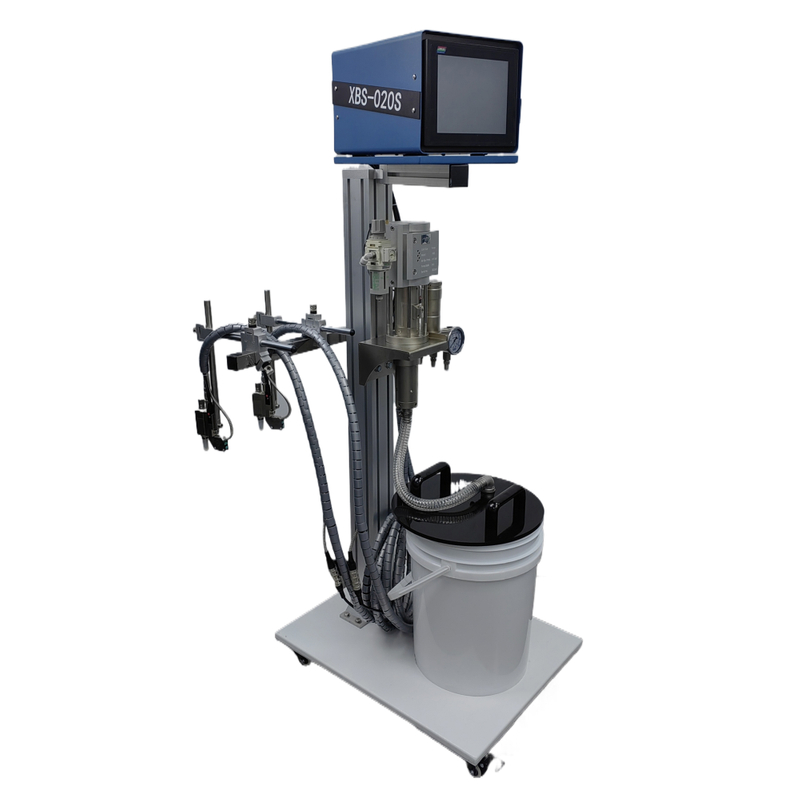

High speed solenoid valve enable non - contact dispensing glue . Precisely dispensing dot and line pattern .
Application of cold Glue
High speed solenoid valve enable non - contact dispensing glue . Precisely dispensing dot and line pattern .

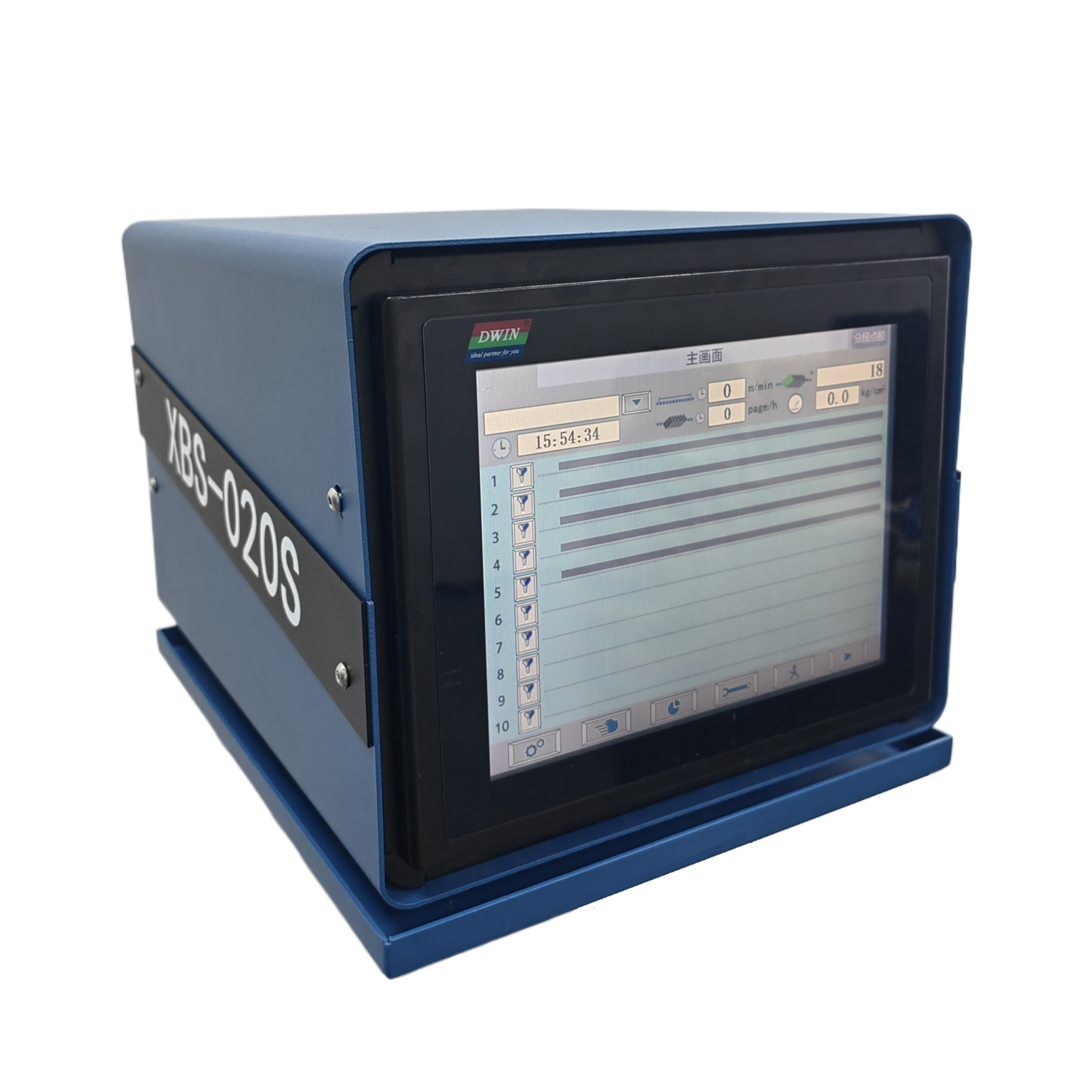

4/8 Controller Data
Model
XBS-020S
Input Voltage
220VAC(±20%)50~60Hz
Power Supply
480W
Job Precision
±1mm
Job Program
500
Gun Segments
8 Segments
Glue Samples
4 Types ( Line \ Dots \ Line & Dots \ Dots & Line )
Guns Quantities
Optional ,4/8
Sensor Quantities
Optional ,4/8
Weight
5Kg

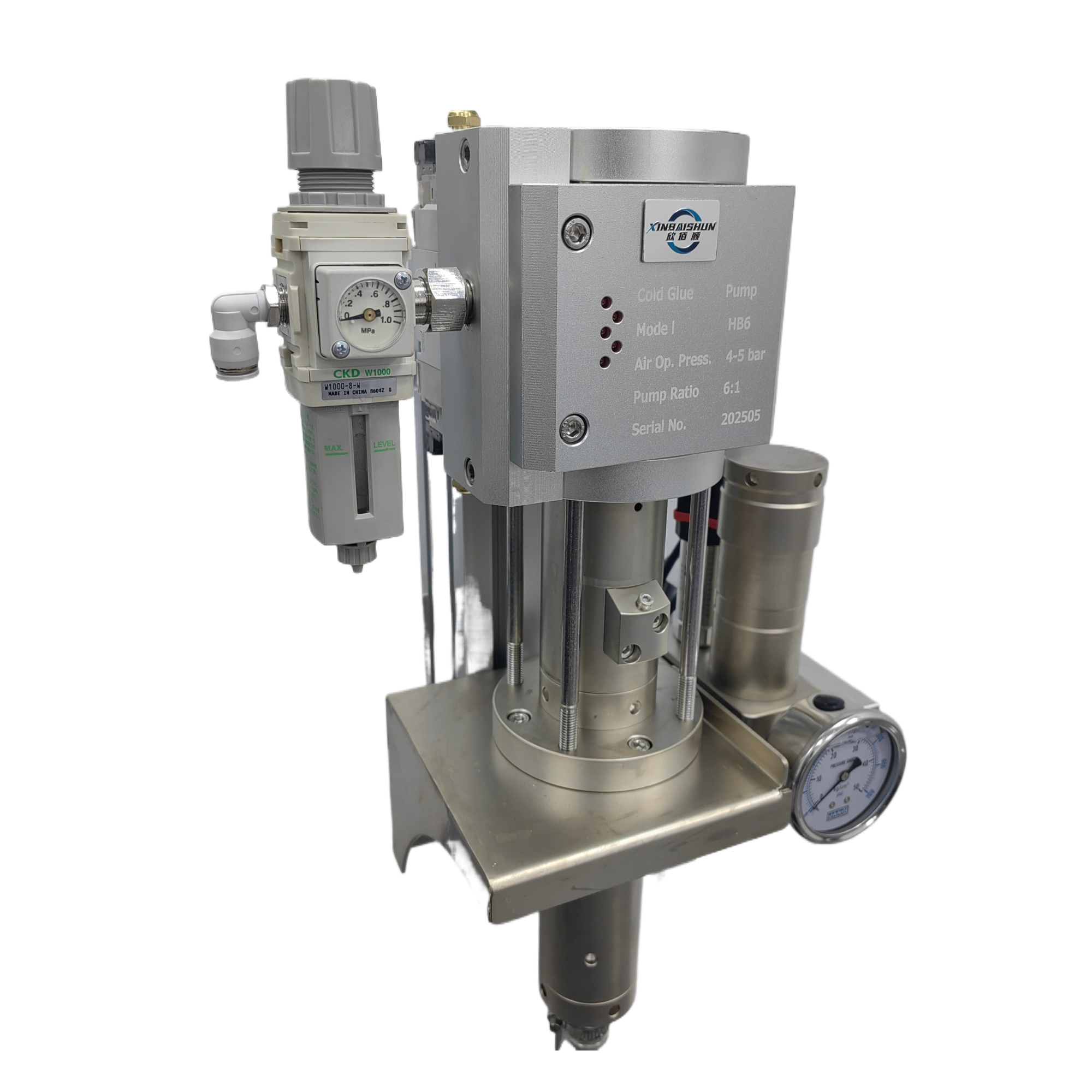

Mid - Pressure Pump
Model
HB6
Maximum Viscosity
5000mPas
Working Efficiency
80cm3
Pressure Ratio
6:1
Air Pressure
6 Bar
Weight
12.5 Kg
Size
485x225x150mm
4/8 Controller Data
Model
XBS-020S
Input Voltage
220VAC(±20%)50~60Hz
Power Supply
480W
Job Precision
±1mm
Job Program
500
Gun Segments
8 Segments
Glue Samples
4 Types ( Line \ Dots \ Line & Dots \ Dots & Line )
Guns Quantities
Optional ,4/8
Sensor Quantities
Optional ,4/8
Weight
5Kg
Mid - Pressure Pump
Model
HB6
Maximum Viscosity
5000mPas
Working Efficiency
80cm3
Pressure Ratio
6:1
Air Pressure
6 Bar
Weight
12.5 Kg
Size
485x225x150mm
