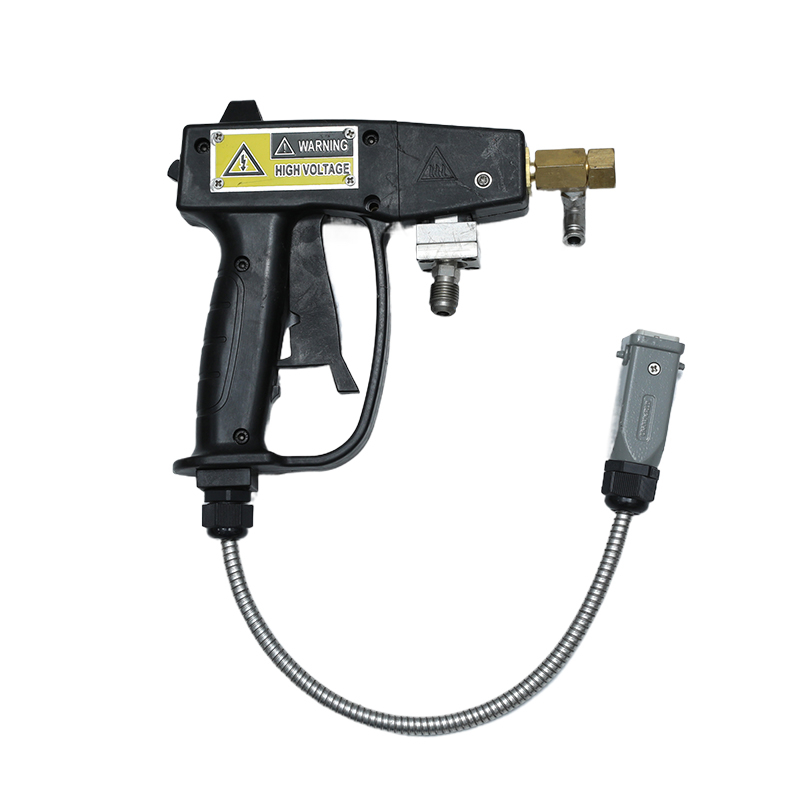

The Customized Manual Spray Gun for Painting redefines precision in handheld coating applications, offering customizable configurations to match specific finishing requirements.
Unlike one-size-fits-all spray guns, it features interchangeable nozzles, adjustable pressure controls, and material-specific settings that eliminate common painting issues—such as orange peel texture, overspray, and uneven coverage. Designed for automotive touch-ups, furniture refinishing, and artistic projects, this gun delivers professional-grade results without the learning curve of industrial systems. Its 0.3-0.6MPa pressure range accommodates everything from thin stains to high-viscosity lacquers, supported by a lightweight aluminum body (780g) that reduces arm fatigue during large projects.
Comes with three precision nozzles: 1.0mm for detail work, 1.8mm for general painting, and 2.5mm for high-build coatings, all made from wear-resistant stainless steel to maintain spray pattern consistency.
Features separate adjustments for air pressure and material flow, allowing fine-tuning of 5-20CFM air consumption to match paint viscosity (100-3000 CPS) and achieve desired finish quality.
Offset handle positioning reduces wrist torque by 30% compared to conventional guns, while the 360° swivel air inlet prevents hose tangling during overhead or vertical spraying.
Perfect for spot repairs, trim painting, and custom detailing, with the 1.0mm nozzle enabling sharp edge definition between panels.
Ideal for applying stains, lacquers, and primers to wooden surfaces, with adjustable atomization that prevents grain raising in porous woods.
Used in mural creation, prop making, and custom art pieces, supporting specialty materials like metallic paints and textured coatings with consistent pattern control.
What air compressor specifications are required?
Minimum 3HP compressor delivering 25CFM at 90PSI to maintain stable pressure during continuous use, with a moisture trap recommended to prevent paint contamination.
How to achieve a smooth finish on glossy surfaces?
Use the 1.8mm nozzle, set pressure to 0.4MPa, and thin paint to 150-200 CPS (measured with a viscosity cup). Apply in 50% overlapping passes at 20-30cm distance.
Can it handle water-based paints?
Yes, when using the stainless steel fluid passage kit (included), it effectively sprays water-based coatings without corrosion issues. Clean with warm water immediately after use.
