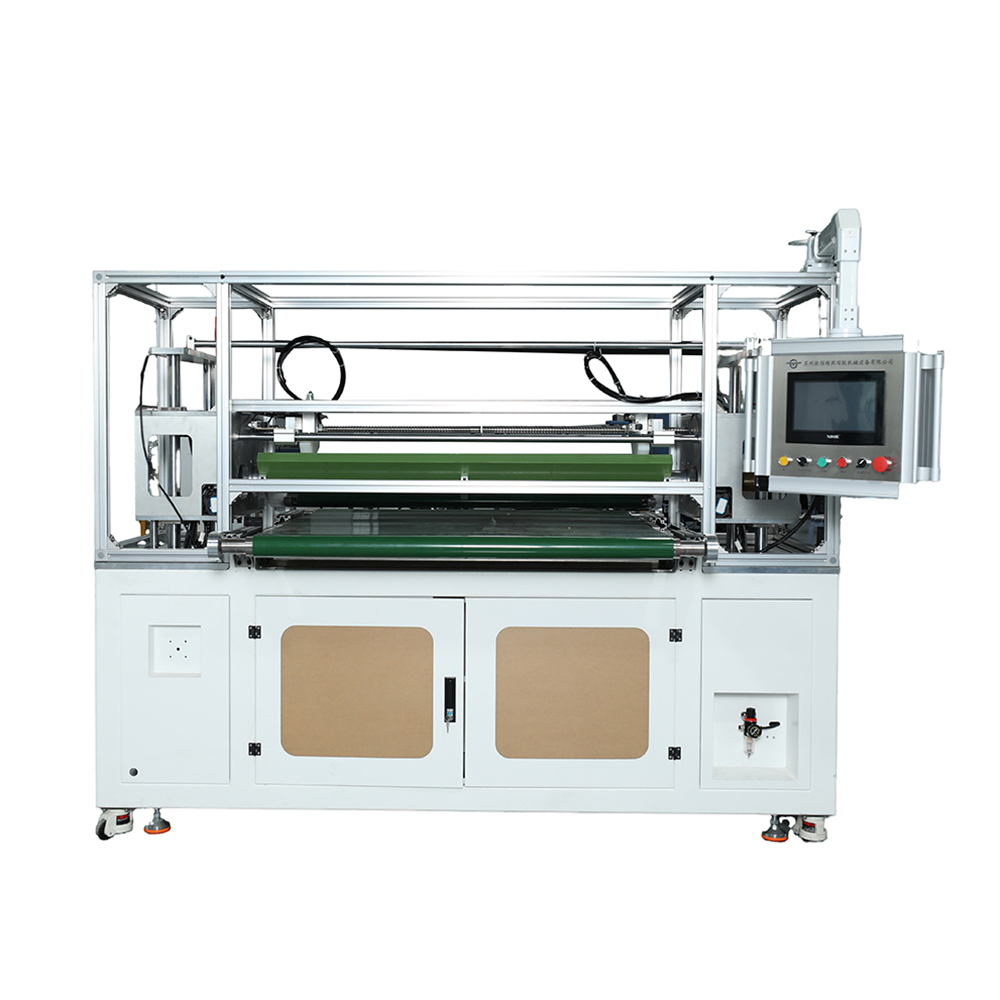

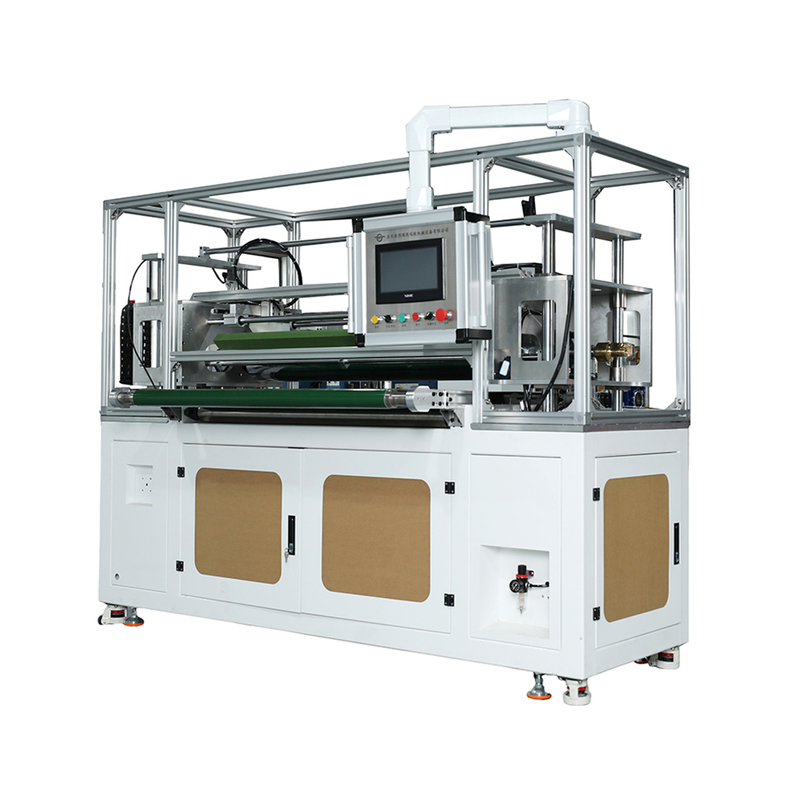

XBS-1300A Roller Coater

Material Width: 1300 mm
Mechanical Speed: 30 m/Min Minimum
Glue Amount: 30-150 g/(Adjustable)
Glue Supply Precision: ≤ 5 %
Convoyer: Silicone Belt
Feeding Material Thickness: 5-45mm
Power Supply: 380V 50Hz 3 Phase
Equipment Size: 2200*1600*1300mm(L * W * H)
Equipment Power: About 3.5KW Maximum
Working Temperature:220℃ Maximum
Roller Diameter: Ø250mm
Glue Amount Adjustment Method:Scraper Adjustment
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Application field:

Pearl cotton, foam plastic, paper box assembly, rubber shoes, clothes, leather, sheet and roll materials can all be laminated by rolling glue.

Features:

1) There should be no leakage of glue in the middle part and no overflow of glue on both sides.

2) The length of the feeding end roller is 1 meter, without power, and the power roller at the discharging end is output.

3) The width of the glue groove on the gluing roller is adjustable, and the adjustment method is by turning the handwheel.

4) Automatic adjustment and control of the glue level: When the liquid level is high, the frequency of the glue supply pump decreases; when the liquid level is high, the frequency of the glue supply pump increases, achieving automatic control of the glue level.

5) The operation is flexible and simple, with touch screen control, which is easy to understand.

6) Significantly reduce labor costs and glue waste costs.

7) It is equipped with a stable rubber supply system and has low after-sales maintenance costs.



Material Width:1300 mm
Mechanical Speed:30 m/Min Minimum
Glue Amount:30-150 g/(Adjustable)
Glue Supply Precision:≤ 5 %
Convoyer:Silicone Belt
Feeding Material Thickness:5-45mm
Power Supply:380V 50Hz 3 Phase
Equipment Size:2200*1600*1300mm(L * W * H)
Equipment Power:About 3.5KW Maximum
Working Temperature:220℃ Maximum
Roller Diameter:Ø250mm
Glue Amount Adjustment Method:Scraper Adjustment
