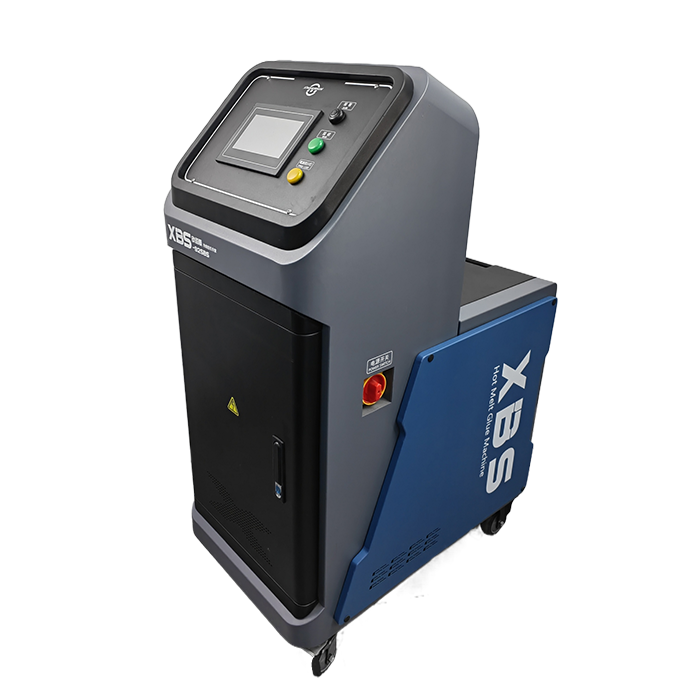

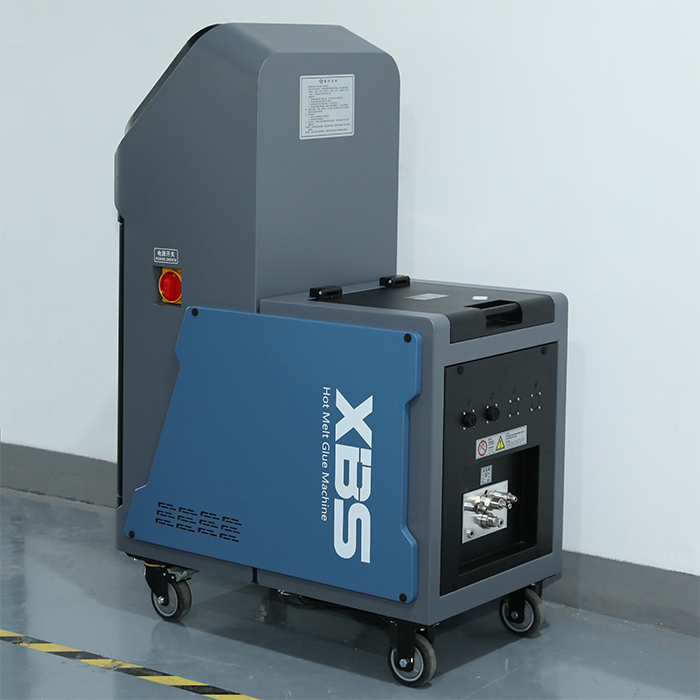

The XBS-925BS Hot Melt Glue Machine for Woodworking is an industrial-grade adhesive system engineered specifically for the demands of furniture manufacturing and joinery. Unlike general-purpose glue machines, it incorporates wood-specific features that address porous material bonding challenges—such as uneven absorption and temperature sensitivity of natural wood fibers. With a high-capacity 15L Teflon-coated tank, this machine maintains consistent adhesive viscosity during extended production runs, supporting 25kg/hour melting capacity to keep pace with assembly line throughput. Its precision temperature control prevents glue carbonization, a common issue in wood bonding that causes weak joints and nozzle clogging .
Digital thermostat with ±1°C accuracy maintains temperatures between 160-200°C—ideal for wood adhesives—with a two-stage filtration system that removes impurities to prevent grain discoloration .
Delivers adhesive at 3.5 bar pressure through specialized wood nozzles, ensuring penetration into porous grain structures while maintaining 0.5mm bead precision for visible joints.

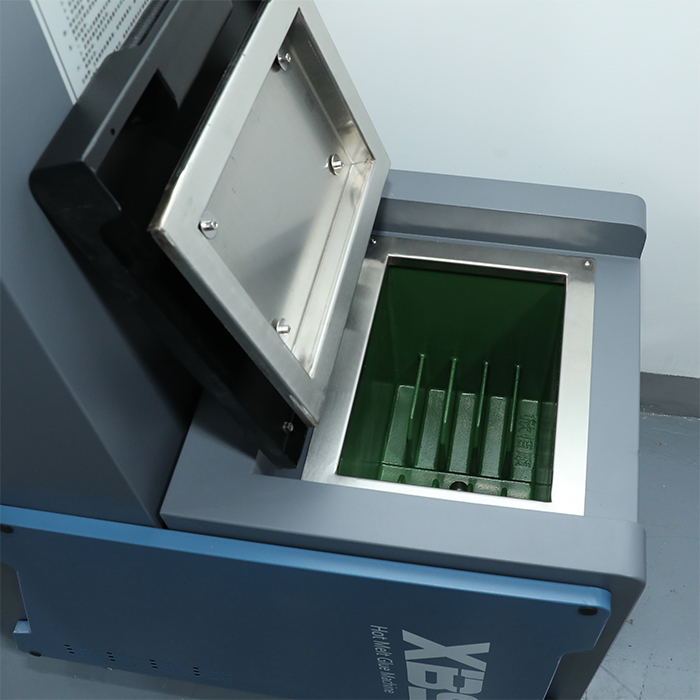

The 15L tank supports 6 hours of continuous operation without refills, while the Teflon coating prevents adhesive residue buildup, reducing cleaning downtime by 40% compared to uncoated tanks .
Used for mortise-and-tenon joints, dowel connections, and edge bonding in hardwood furniture production, providing stronger bonds than mechanical fasteners alone.
Ideal for bonding veneers to MDF substrates and laminating plywood sheets, with adjustable bead patterns accommodating different panel thicknesses (3-50mm).
Applied in decorative inlay work, marquetry, and wooden toy assembly, where precise glue placement prevents wood fiber swelling or warping.
What type of adhesives work best for hardwood bonding?
Polyamide-based hot melts with 170-180°C processing temperatures are recommended for hardwoods like oak and maple, while EVA formulations work well for softwoods .
How to prevent glue from seeping into wood pores?
Adjust the pressure regulator to 2.8 bar for porous woods and use the 0.5mm restrictor nozzle to control penetration depth. Test on scrap pieces first to determine optimal settings.
What maintenance is required for continuous operation?
Clean the filtration system every 8 hours and perform a full tank flush with cleaning solvent weekly. Replace Teflon gaskets annually to maintain pressure integrity.
