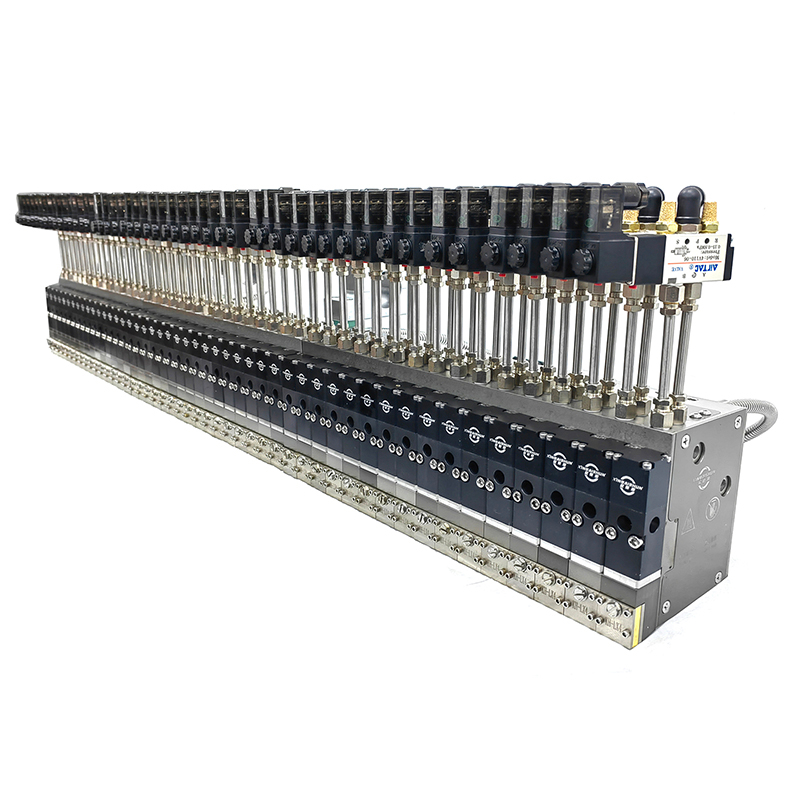

The Customized Large Width Fiber Spray Gun revolutionizes industrial adhesive application with its ability to cover extensive surfaces while maintaining bond integrity.
Unlike traditional spray guns limited to narrow patterns, this system delivers adjustable fiber spray widths up to 305mm (12 inches), significantly reducing application time for large substrates. Its unique random fiber pattern technology uses up to 30% less adhesive than spiral spray methods while improving bond strength through increased surface contact . Designed for industries ranging from insulation to automotive, it handles hot melts, PSA, and reactive adhesives with equal precision, making it a versatile addition to production lines.
Single nozzle design allows pattern width adjustment from 50mm to 305mm by varying distance from the substrate, eliminating the need for multiple nozzle changes during production .
Operates at 40-200°C (100-400°F) to accommodate diverse adhesives, from low-melt EVA to high-performance PUR formulations, with a heated hose option for extended reach applications.
Uniform Coat Distribution
Proprietary air turbulence technology eliminates ridges and valleys common in swirl applicators, maintaining consistent 20-80g/m² coat weights across the entire spray width.
Insulation Installation
Perfect for bonding fiberglass and foam insulation to metal and plastic substrates in HVAC, refrigeration, and building construction.
Automotive Interior Lamination
Used for headliner assembly and carpet bonding, providing uniform coverage across large panels with minimal adhesive waste.
Furniture Upholstery
Ideal for bonding fabric, foam, and vinyl to wooden or metal frames, with adjustable patterns matching different furniture component sizes.
What air supply is required for optimal performance?
Minimum 5HP compressor delivering 40CFM at 80-100PSI with a moisture separator to prevent adhesive contamination and pattern distortion.
How to adjust for different adhesive viscosities?
Use the pressure regulator (1-4 bar) to control flow rate: lower pressure (1-2 bar) for high viscosity adhesives, higher pressure (3-4 bar) for low viscosity materials.
Can it create custom patterns for irregular substrates?
Yes, the pattern shaping plate (included) allows modification of spray geometry, with templates available for common irregular shapes like automotive door panels.
