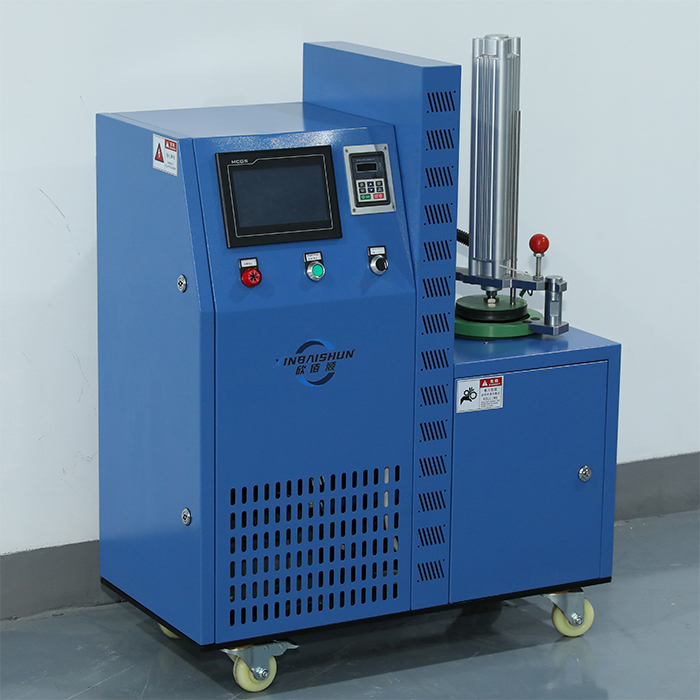

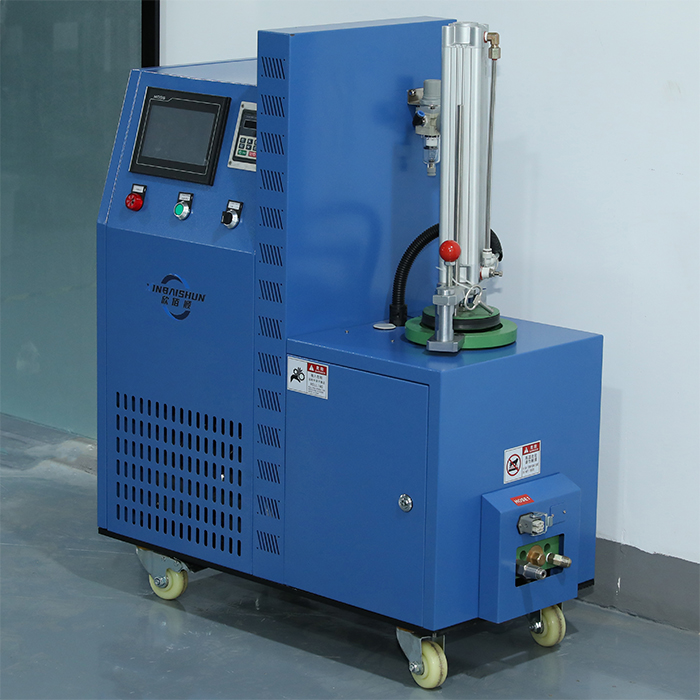

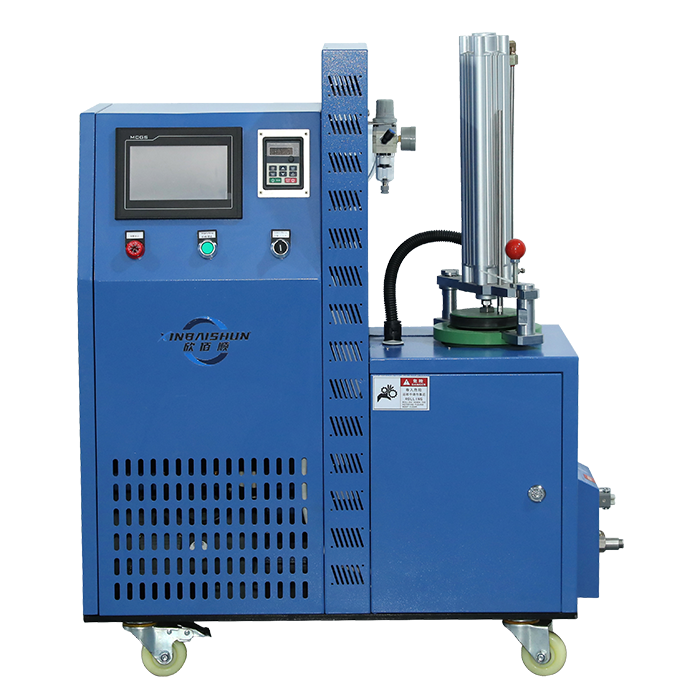

The XBS-05PUR-T PUR Hot Melt Glue Machine represents a premium bonding solution for industries requiring superior strength, chemical resistance, and environmental durability. Unlike traditional EVA hot melts, this system is optimized for polyurethane reactive (PUR) adhesives that form cross-linked bonds with moisture in the air, creating bonds that withstand extreme temperatures (-30°C to 120°C), UV exposure, and chemical exposure. Its industrial-grade design features a 5-gallon (18.9L) sealed melting tank that prevents moisture contamination—critical for PUR adhesives that cure prematurely when exposed to humidity. With a 20kg/h melting capacity and 10-45m/min application speed, it supports high-volume production in packaging, automotive, and construction sectors .
A nitrogen-purged 18.9L tank with vacuum lid maintains <30% relative humidity inside, preventing premature curing of PUR adhesives that require moisture for final cross-linking.
Operates between 40-230°C with zone-specific heating, allowing precise viscosity control (500-20000 CPS) for different PUR formulations from flexible to high-strength varieties .
Adjusts pump pressure dynamically based on adhesive temperature and viscosity, maintaining consistent 35-45g/m² application rates for PVC and wooden substrates .
Used for bonding interior trim, headliners, and door panels, providing bonds that resist temperature fluctuations and automotive fluids.
Ideal for luxury box construction, bookbinding, and rigid packaging that requires moisture resistance and long-term bond integrity.
Applied in bonding decorative films to MDF panels, PVC to aluminum profiles, and wood veneers to substrates in furniture production .
What is the curing time for PUR adhesives applied with this machine?
Initial bond strength develops in 30 minutes, with full cross-linking achieved in 24 hours at 50% relative humidity. Final bond strength reaches 2.5N/mm² after 72 hours.
How to handle adhesive changes between production runs?
Perform a full system purge with PUR cleaning solvent and heat the tank to 200°C for 30 minutes to remove residual adhesive before switching formulations.
What safety precautions are required?
Use with adequate ventilation, wear heat-resistant gloves, and avoid skin contact with molten PUR—cured adhesive requires mechanical removal as it bonds instantly to skin.
