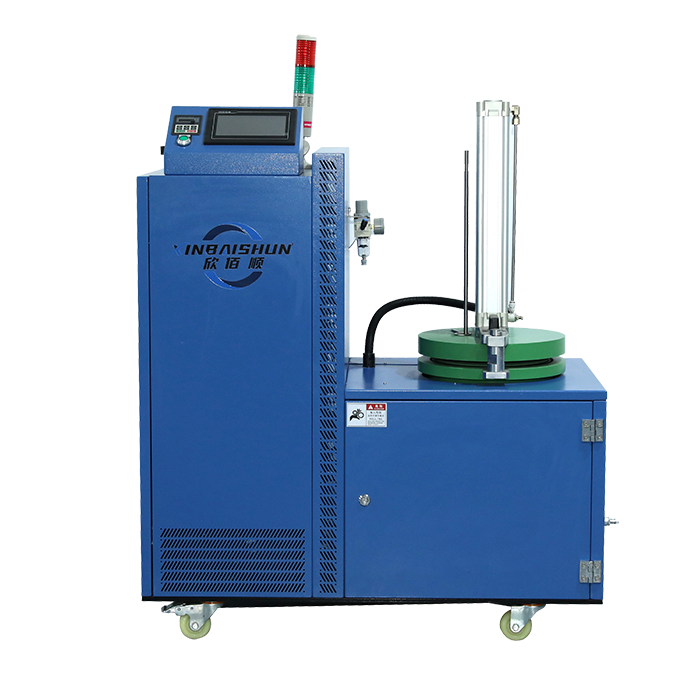

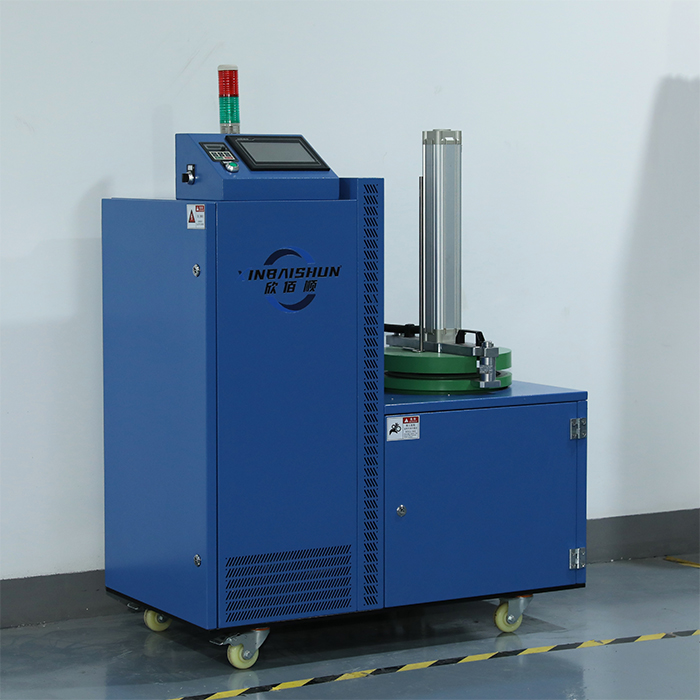

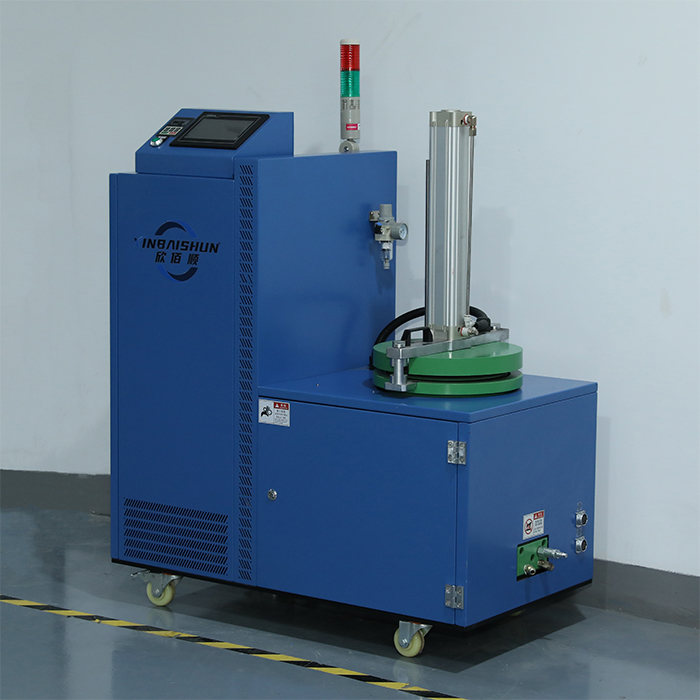

XBS-5PUR-TJ PUR Hot Melt Glue Machine

Model: XBS-5PUR-TJ
Tank Capacity: 5gallon
Tank Capacity: 286 OR 280mm
Max Operation Temp: 200℃
Main Machine Power: 11600W
Poewe Requirement: AC380V/50Hz
​Dimenslon:LxWxH: 1080*610*1080MM
Weight: 200KG
Set Of Hose&Gun: 1-2
Pump Type: Gear Pump
Temperature Control: PLC
Sensor: Type K
Dynamic Viscosity: 1000-50000MAX.CPS
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

—The main control part adopts components from well-known brands at home and abroad, with high reliability and strong anti-interference ability.

—The glue output of the precision gear pump is stable, preventing excessive deviation in glue amount during production.

—Using precise PID temperature control, the temperature is accurate to ±0.1°C, which can more effectively reduce carbonization and save energy consumption.

—The electrical and mechanical separation structure better protects electrical appliances and facilitates mechanical maintenance.

—High-performance connector, safe and reliable, with good earthquake resistance and stable performance.

—The heating platen is spray-coated with imported DuPont Teflon and precision machined from solid aluminum, which greatly reduces the carbonization of hot melt adhesive.

—Applicable to products in high-viscosity light and heavy industries: home appliances, home furnishings, aviation, automobiles, etc.


Model

XBS-5PUR-TJ

Tank Capacity

5gallon

Tank Capacity

286 OR 280mm

Max Operation Temp

200℃

Main Machine Power

11600W

Poewe Requirement

AC380V/50Hz

Dimenslon:LxWxH

1080*610*1080MM

Weight

200KG

Set Of Hose&Gun

1-2

Pump Type

Gear Pump

Temperature Control

PLC

Sensor

Type K

Dynamic Viscosity

1000-50000MAX.CPS
