Traditional pneumatic piston and diaphragm pumps inherently produce pressure and volume fluctuations during operation. In industrial adhesive applications, this pulsation forces you to over-dispense to ensure adequate coverage. This frustrating dynamic leads to massive material waste, messy jointing, and increased operational expenses.

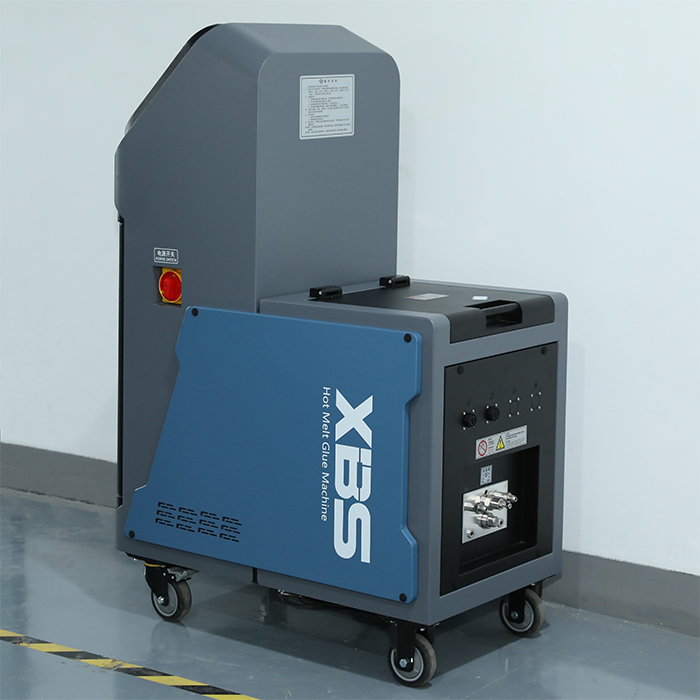

Transitioning to Gear Pump Hot Melt Glue Machines replaces reciprocating action using positive displacement rotary mechanics. It delivers a pulseless, continuous flow capable of handling extreme viscosities safely. This upgrade reduces adhesive waste and enables precise closed-loop automation on your factory floor.
This guide breaks down the top seven industrial use cases where gear pump precision outperforms traditional melters. We also provide an evidence-based framework for shortlisting the right equipment for your production line. You will learn how to optimize your manufacturing processes and eliminate common application errors.
Volumetric Precision: Gear pumps offer up to 97–99% volumetric efficiency, limiting flow pulse to under 1% and virtually eliminating overspray.
High-Viscosity Capability: Specifically engineered to process PUR, jellies, and high-tack adhesives without motor stalling or pressure drops.
Operational ROI: Upgrading to smart, all-electric gear pump systems can reduce extruder pressure fluctuations by 90% and cut specific energy consumption by 15–25%.
Risk Mitigation: Selecting tankless designs or Teflon-lined closed-loop systems is critical to preventing adhesive charring and unplanned downtime.
Piston pumps provide high-pressure bursts. These bursts suit basic, heavy-duty applications perfectly. However, they consistently fall short in automated lines. Modern manufacturing setups require exact metered dosing. You simply cannot afford volume fluctuations when applying thin films or micro-dots.
Rotary gear mechanics fundamentally change how adhesives move through your system. They offer three distinct advantages for automated production:
Reduced Pulsation: The pump mechanically shears and moves adhesive in a continuous stream. This continuous action proves critical for thin-film coating and intricate profile wrapping.
Throughput Scalability: Advanced planetary gear setups can split a single adhesive feed. You can route this feed into multiple (up to 32) independently metered streams. This drastically increases multi-line throughput.
Predictable Material Usage: By locking in exact gram-per-meter output, material forecasting becomes highly accurate. You eliminate guesswork and stabilize your daily material expenses.
To visualize the structural differences, review the comparison chart below:
Operational Feature | Piston Pump Systems | Gear Pump Systems |
|---|---|---|
Delivery Mechanism | Reciprocating bursts | Positive displacement rotary flow |
Flow Pulsation | High (requires frequent over-dispensing) | Under 1% (virtually pulseless) |
Best Suited For | Heavy structural framing, intermittent manual use | Automated robotics, high-speed continuous webs |
Certain industries leave zero room for error. A single skipped millimeter of glue can fail an entire product batch. Gear pumps excel in these high-stakes environments.
Automotive interiors endure extreme heat variations. Headliners and dashboards require seamless, invisible bonds to prevent peeling over time. Furthermore, engine air filters require continuous, zero-gap sealing to function properly. Any gap lets particulate matter enter the engine block.
Frequency conversion speed regulation allows for exacting bead profiles. The pump maintains precise PID (Proportional-Integral-Derivative) temperature control. This prevents viscosity drops during high-speed robotic dispensing.
Best Practice: Always sync your gear pump's variable frequency drive directly to your robotic arm's velocity map. This ensures bead thickness remains perfectly uniform during cornering accelerations.
Hot Melt Extrusion (HME) in pharma requires strict FDA compliance. You face near-zero tolerance for dosage errors when compounding active pharmaceutical ingredients.
A specialized melt gear pump provides 0.1–0.5% flow accuracy. It easily handles highly viscous polymer melts under elevated pressures. More importantly, it achieves this without degrading heat-sensitive active ingredients. The continuous, pulseless flow guarantees uniform drug dispersion.
Common Mistake: Using standard industrial seals in pharma applications. You must specify FDA-approved labyrinth seals to prevent contamination.
When lines run continuously, downtime destroys profitability. You need equipment built for relentless operation.
Packaging lines must run 24/7 to meet consumer demand. Adhesive charring frequently causes nozzle blockages. A single blocked nozzle halts the entire line, spoiling perishable goods waiting upstream.
Modern gear systems feature tankless melting. They use Teflon-coated reservoirs to prevent carbonization. Their continuous flow ensures fast-setting, FDA-compliant adhesives secure cartons rapidly. You eliminate stringing and messy box flaps entirely.
To maintain peak efficiency in packaging, follow these operational steps:
Monitor your daily adhesive consumption carefully.
Enable standby auto-circulation during brief line pauses.
Schedule routine filter checks every 500 operating hours.
Diapers and medical dressings require micro-dot or ultra-thin spray applications. These substrates are highly sensitive and heat-deformable. Too much heat or pressure melts the fabric instantly.
Independent motor-driven pumps coordinate directly with line speeds using encoder feedback. They maintain perfect coat weights regardless of line acceleration or deceleration. You get soft, flexible bonds without substrate burn-through.
Heavy materials require heavy-duty adhesives. Gear systems process these challenging formulations seamlessly.
Bonding laminates, MDF, and particleboard requires driving highly viscous PUR (Polyurethane Reactive) adhesives. PUR cures to over 1,000 lbs of tensile strength. However, it easily clogs weak pumps.
High-torque motors paired with cast copper or stainless steel pumps handle PUR comfortably. They never stall under pressure. You achieve uniform edge banding without voiding. Void-free application ensures moisture cannot penetrate and swell the wood.
Producing flat-lay paperback books requires flexible but highly resilient spines. You must apply the adhesive rapidly and evenly across the milled paper edges.
The system accurately meters PUR or EVA adhesive into the spine milling cavity. It forms a continuous ribbon. This ensures every page catches securely. You avoid excess glue squeezing out the ends and ruining the cover aesthetics.
Modern construction increasingly eliminates mechanical fasteners like nails and screws. Applications like flooring, garage doors, and tile backing demand void-free structural adhesive application.
A rotary gear system delivers heavy, thick beads of structural adhesive at consistent pressures. It sustains this output over long uninterrupted runs. You achieve solid, vibration-resistant bonds across large surface areas.
Upgrading your production line requires careful technical evaluation. When evaluating Hot Melt Glue Machines, you must match the hardware exactly to your chemical requirements.
Viscosity and Temperature Envelope: Verify the pump's specific capacity. Standard units handle oils and basic waxes easily. However, specialized melt pumps are required for 500,000+ cps viscosities and 400°F+ temperatures. Always test your exact adhesive formulation.
Anti-Charring and Clog Prevention Architecture: Evaluate the internal flow paths. Does the machine offer a closed-loop auto-circulation valve? Keeping adhesive moving during standby is an implementation necessity. It prevents nozzle blockages. Look for Teflon-lined internal chambers. Ensure thermal-break insulation exists between the motor and heating block to extend motor lifespan.
All-Electric vs. Pneumatic Requirements: Shifting to all-electric units removes your reliance on factory compressed air. This eliminates complex pneumatic seals and annoying compressor noise. However, you must verify your facility's electrical load capacities prior to installation.
Industry 4.0 Integration: Shortlist systems featuring integrated pressure and temperature sensors. Predictive maintenance alerts monitor motor vibration and torque. These smart alerts can slash your unplanned downtime by up to 40%.
Sticking with legacy piston equipment for precision applications creates severe operational bottlenecks. It leads directly to hidden material waste, product rejects, and frustrating line stoppages. Modern manufacturing demands better control.
Hot Melt Glue Machines utilizing gear pump technology offer the closed-loop control required for scalable manufacturing. They deliver unmatched consistency, eliminate overspray, and handle the industry's toughest adhesives effortlessly.
Next Steps:
Audit your current adhesive volume per shift to establish a baseline.
Measure your material variance. If your variance exceeds 5%, an upgrade is necessary.
If you run highly viscous PUR, request a technical capability assessment from an equipment vendor today.
A: Hot melt variants are specifically engineered with labyrinth seals and high-temperature tolerances. They safely handle temperatures up to 950°F in extreme manufacturing cases. They also feature integrated thermal jackets to keep polymer adhesives in a fully molten state without chemically degrading them.
A: Premium machines utilize tankless continuous-melt technology. Alternatively, they use Teflon-coated tanks combined with standby auto-circulation. This means the glue constantly flows and never sits stagnant at maximum heat long enough to carbonize and block your nozzles.
A: Yes, provided you purge the system thoroughly between changes. However, PUR requires strictly moisture-sealed systems. These setups often use nitrogen blankets or specialized foil-wrapped melters to prevent the PUR from prematurely cross-linking and curing solid inside the pump casing.
