In industrial adhesive applications, selecting the wrong delivery mechanism leads directly to inconsistent bonds. You will likely experience premature equipment wear. Production bottlenecks frequently follow. While gear pumps dominate continuous-flow applications, specialized tasks require different tools. A distinctly different system handles high-pressure, intermittent dispensing. Facility managers rely on these robust machines for high-viscosity materials.
This guide breaks down the core mechanics of piston-driven systems. We detail their engineering advantages and objective evaluation criteria. You will learn how to properly specify the right equipment. We help you match pump capabilities directly to your production lines. Packaging engineers can use this framework to evaluate performance accurately. Ultimately, you will understand how to integrate these devices seamlessly into modern manufacturing environments.
Pneumatic Power: Piston pumps utilize compressed air to drive a double-acting cylinder, delivering high instantaneous pressure ideal for rapid, intermittent "dot" or "stitch" dispensing.
Viscosity & Durability: They effectively manage high-viscosity adhesives (1,000 to 36,000 CPS) and are significantly more tolerant of minor adhesive impurities or charring than gear-driven alternatives.
Adhesive Protection: A "no-bypass" design means adhesive does not unnecessarily recirculate, minimizing thermal degradation and preserving glue integrity.
Total Cost of Ownership: With fewer complex moving parts (no gearboxes), maintenance primarily involves replacing seals, resulting in lower long-term upkeep costs.
Understanding the internal mechanisms of a piston pump helps you troubleshoot issues quickly. The system relies on pure mechanical force. You do not need complex electrical motors to push the fluid.
Driven by an industrial air cylinder, the system uses a rapid two-stroke oscillation. This movement creates a strong negative pressure. The pump draws in molten adhesive on the upstroke. It simultaneously dispenses adhesive. On the downstroke, the cylinder pushes the fluid out forcefully. This double-acting nature ensures a relatively continuous flow of adhesive. Operators rely on this dual movement to maintain high production speeds.
Standard pumps experience a momentary pressure drop. This occurs at the exact "dead center" of the stroke switch. The piston must reverse direction instantly. High-end systems utilize built-in compensation valves. These specialized components mitigate the pulse. They ensure a uniform application across the entire substrate. Without this technology, you would see gaps in your adhesive line.
Output volume naturally adjusts itself during operation. It reacts based on nozzle friction resistance. It also responds directly to adhesive viscosity. This adaptive behavior eliminates the need for constant manual recalibration. The internal design avoids unnecessary fluid bypass. Your adhesive does not recirculate repeatedly. This protects the chemical integrity of the glue.
Industrial units usually feature a horizontal base mount. Engineers place the pump flat at the bottom of the melt tank. We recommend this specific configuration for several reasons:
It allows the pump body to heat uniformly.
It absorbs thermal energy directly from the melt tank base.
It eliminates cold spots inside the intake manifold.
It prevents highly viscous gels from choking the intake valve.
Best Practice: Always allow the system to heat fully. Check the base temperature before activating the pneumatic air supply.
Engineers often debate which system works best. You must base your decision on application physics. Different adhesive tasks demand entirely different mechanical approaches. When evaluating various Hot Melt Glue Machines, you must understand their foundational limits.
Gear pumps deliver continuous, precision volumetric flow. They use electric motors to turn interlocking gears. Piston pumps deliver high-burst, pressure-driven flow. They use compressed air to drive a rigid shaft. One focuses on absolute volume precision. The other focuses on raw explosive pressure.
You should specify a gear pump for continuous line dispensing. Edge banding heavily relies on this technology. Continuous lamination also requires gear-driven accuracy. The priority here remains zero pulsation. You need absolute volume precision over long runs.
You should specify a piston pump for intermittent dispensing. High-speed carton sealing is the perfect example. Your priority becomes high burst pressure. You must handle highly viscous adhesives. You also need a machine capable of resisting system jams from carbonized debris.
Feature Category | Gear Pump System | Piston Pump System |
|---|---|---|
Drive Mechanism | Electric motor turning internal gears | Pneumatic air cylinder driving a shaft |
Flow Characteristics | Continuous, highly precise volume | Intermittent, high-burst pressure |
Impurity Tolerance | Low (Debris easily seizes gears) | High (Debris passes through valves) |
Ideal Application | Wood edge banding, web coating | Carton sealing, heavy assembly |
Facility managers prefer pneumatic architectures for harsh environments. The design offers distinct benefits over motorized counterparts. You gain reliability under severe production stresses.
These systems feature incredibly high pump-pressure ratios. Common ratios include 14:1 or 17.5:1. This mechanical advantage allows the system to spit adhesive instantly. It reacts the moment an application valve opens. You prevent trailing glue lines. You eliminate missed targets on high-speed conveyors. The pneumatic force provides unmatched acceleration.
Industrial adhesives frequently degrade over time. Overheating creates small carbonized particles in the tank. The mechanical clearances in a piston pump allow these particles to pass safely. They exit through the nozzle without causing a catastrophic seizing event. In contrast, hard debris quickly locks up a motorized gear assembly. Your production line stays active despite minor contamination.
The pump only actuates when dispensing adhesive. During "off" cycles, it remains entirely static. When your line pauses, the pump sleeps. This reduces facility energy consumption dramatically. It also limits mechanical wear on the internal seals. The system does not churn adhesive needlessly. You protect the polymer chain integrity.
You can quickly adjust flow and pressure intensity. Operators simply increase or decrease the facility's pneumatic input pressure. A standard air regulator handles this task. You do not need to reprogram complex electrical inverters. You just turn a physical dial to match the required output.
Common Mistake: Operators often attempt to adjust flow by tweaking the nozzle valve first. Always calibrate your main pneumatic input regulator before making micro-adjustments at the application head.
Certain industries push equipment to absolute limits. Viscous glues and rapid cycling destroy weak machinery. Specialized Hot Melt Glue Machines excel in these specific high-demand environments.
Packaging facilities rely heavily on these units. They remain ideal for high-speed cartoning tasks. Case sealing requires precise, intermittent "dot" patterns. These patterns save expensive adhesive. They maintain structural integrity perfectly. The pneumatic burst ensures every carton receives an identical glue pattern. Your boxes will not pop open during transit.
Furniture manufacturing presents unique bonding challenges. You must push incredibly thick, heavy adhesives. These glues provide structural joint bonding. Upholstery assembly lines demand quick bursts of high-tack material. Mattress manufacturing utilizes these pumps to bind foam layers. The high pressure easily moves viscous liquids through long heated hoses.
Building materials require permanent bonding solutions. Construction supply facilities use heavy-duty polymers. These materials often feature much higher CPS (Centipoise) ratings. The pneumatic force easily displaces these dense fluids. Workers use them to laminate insulation panels. They also assemble specialized door frames.

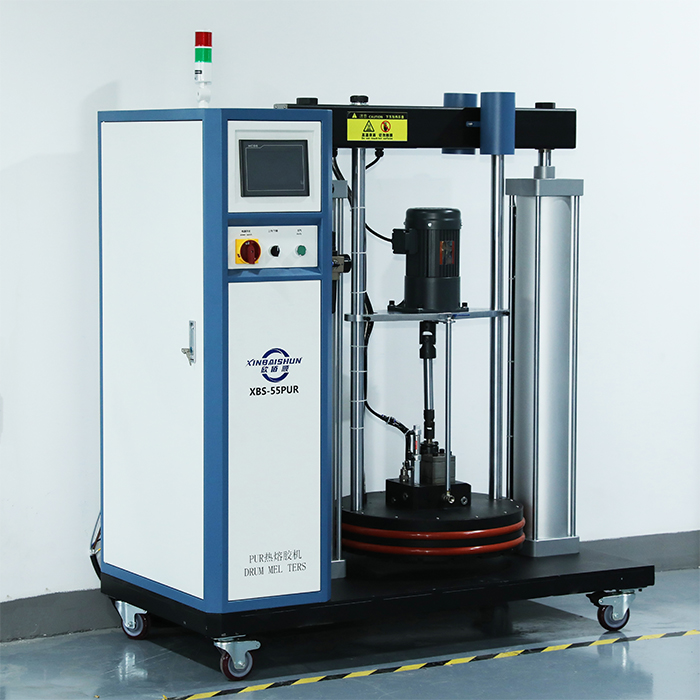

Purchasing industrial equipment requires methodical analysis. You cannot select a unit based on physical size alone. Selecting a high-quality Piston Pump Hot Melt Glue Machine requires evaluating internal structural factors.
Evaluate Melt Rate First: Do not size based solely on tank volume. A 20L tank means nothing if the heater cannot melt glue quickly.
Match Hourly Demand: Calculate your exact kilograms per hour requirement. Evaluate the machine's stated melt rate per hour.
Prevent Cavitation: If the pump draws un-melted gel, cavitation occurs. This introduces air into your fluid lines. Adequate melt rates prevent this failure.
Look for systems featuring cast-in heating elements. Alternatively, specify compact heated blocks at the tank base. You need perfectly even temperature distribution. Localized overheating destroys adhesive chemistry. It causes premature charring inside the reservoir. A well-designed thermal block protects your materials.
Industrial safety remains paramount during operation. High-pressure hot liquids present severe burn hazards. You must verify two critical safety features:
Pressure Relief Valves: These are essential for automatically depressurizing the system. They activate during emergency stops. They protect operators during routine maintenance.
Cool-Touch Enclosures: These specialized outer panels minimize burn risks. They provide a safe working environment in tight operating footprints.
Review the primary manifold design carefully. Ensure it supports the necessary number of independent heated hoses. Complex packaging lines require multi-point dispensing. You might need four or six separate application heads. A robust manifold allows future expansion without replacing the entire base unit.
Every mechanical system requires scheduled upkeep. Continual maintenance represents a normal part of operating hot melt equipment. Recognizing early failure signs prevents catastrophic line shutdowns.
You must train operators to spot mechanical degradation early. Key indicators demanding a pump rebuild include:
Adhesive Weeping: Look for fluid leaking around the main pump shaft. This clearly indicates a major seal failure.
Erratic Stroking: Listen to the cycle rhythm. If one stroke sounds slower than the other, you have a problem. This usually points to debris caught behind the internal ball bearings.
Dry Stroking: The pump strokes rapidly but no adhesive extrudes. This often means gelled, over-heated adhesive is blocking the main intake manifold.
Safety protocols protect your maintenance staff from severe injury. Never attempt to dismantle a cold pump. The solid adhesive acts like concrete. It will bind the internal threads completely. Equipment must be brought up to full operating temperature first. This liquefies the adhesive.
Once hot, you must shut off the main electrical power. Lock out the pneumatic air supply line immediately. Finally, safely bleed all residual fluid pressure. Only then should a technician begin part replacement.
Common Mistake: Using excessive physical force to unscrew a cold filter manifold. Always heat the system to melt the internal bonds before applying a wrench.
Piston pump hot melt glue machines serve as incredibly robust workhorses. Manufacturers designed them specifically for high-pressure, intermittent applications. They thrive in demanding, heavily contaminated environments. Their straightforward mechanical design ensures reliable operation.
If your operation relies on continuous, high-precision laminating lines, a gear pump remains necessary. However, packaging lines require different capabilities. Heavy assembly operations demand raw force. When dealing with high-viscosity adhesives, you need pneumatic power. For facilities battling potential carbonization, this architecture remains the most reliable engineering choice.
You must evaluate your current production metrics carefully. Analyze your exact adhesive viscosity. Map out your required dispensing patterns. Calculate your maximum production speed. Once you gather these data points, consult with an application engineer. They will help match those precise metrics to the optimal tank size and pump pressure ratio.
A: Most industrial piston pumps efficiently process adhesives ranging from 1,000 up to 36,000 CPS. This wide operational range makes them highly versatile. You can successfully pump standard EVAs. You can also easily push much thicker, heavy-duty formulations.
A: This specific behavior usually indicates a severe mechanical blockage. Common culprits include a clogged inline filter or a blocked application nozzle. Alternatively, degraded, gel-like adhesive might sit at the bottom of the tank. This prevents the pump from drawing fresh material.
A: Maintenance intervals depend heavily on usage rates, operating temperatures, and adhesive types. However, routine inspection of filters and seals should be conducted monthly. You should schedule preventative seal replacements during standard facility downtime. This approach avoids unplanned operational outages.
